Opera Sprint Label

All your work on the tip of your fingers...

The assistant to the cutting station integrated with Opera Job Management that re-optimize cutting lists coming from the design office, manages offcuts and prints customizable design labels with barcodes for the machining center.

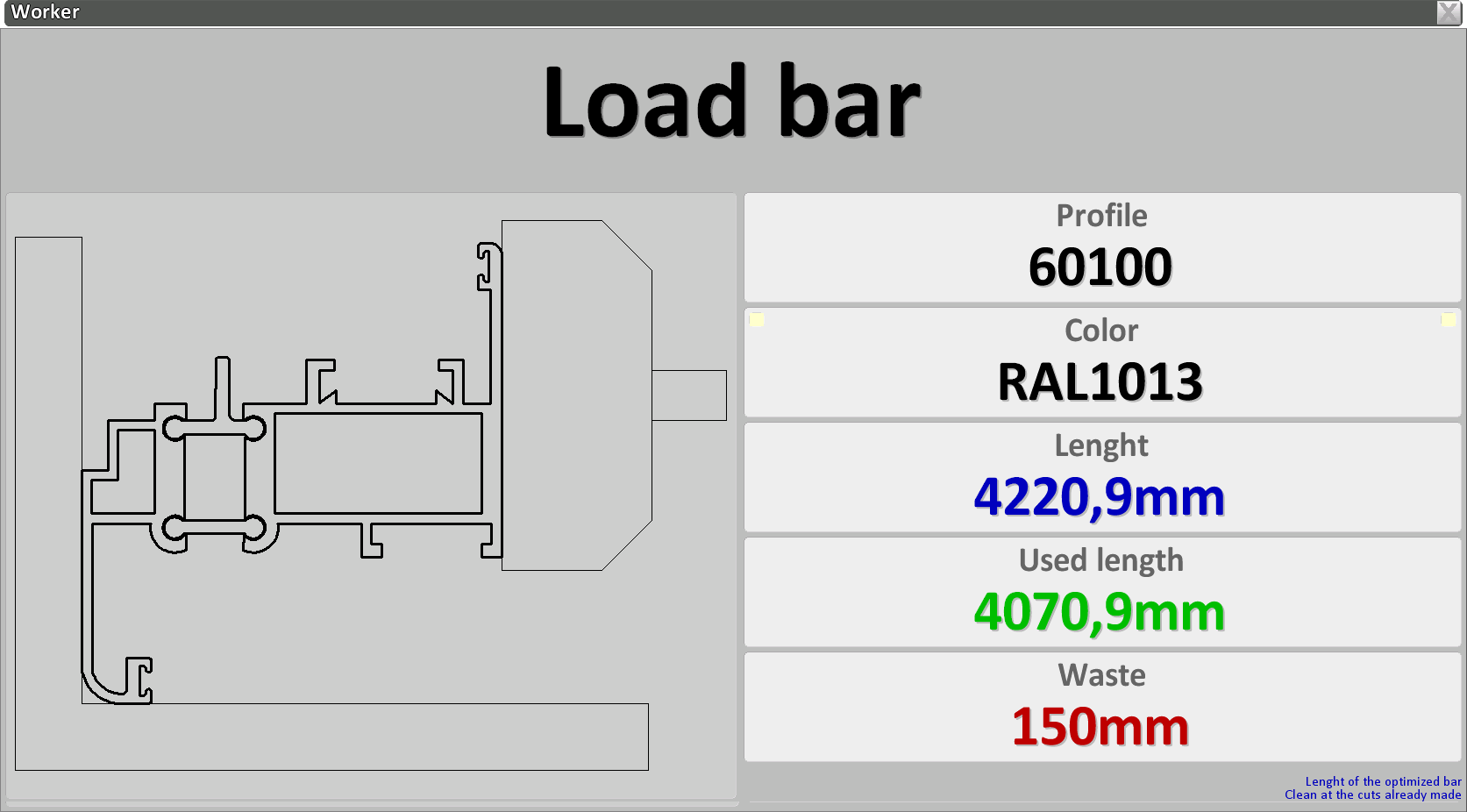

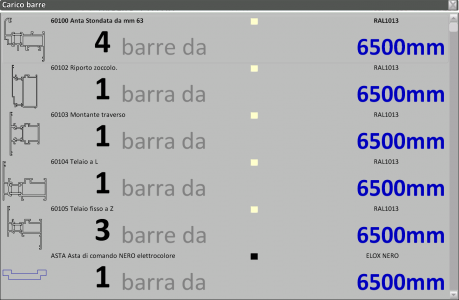

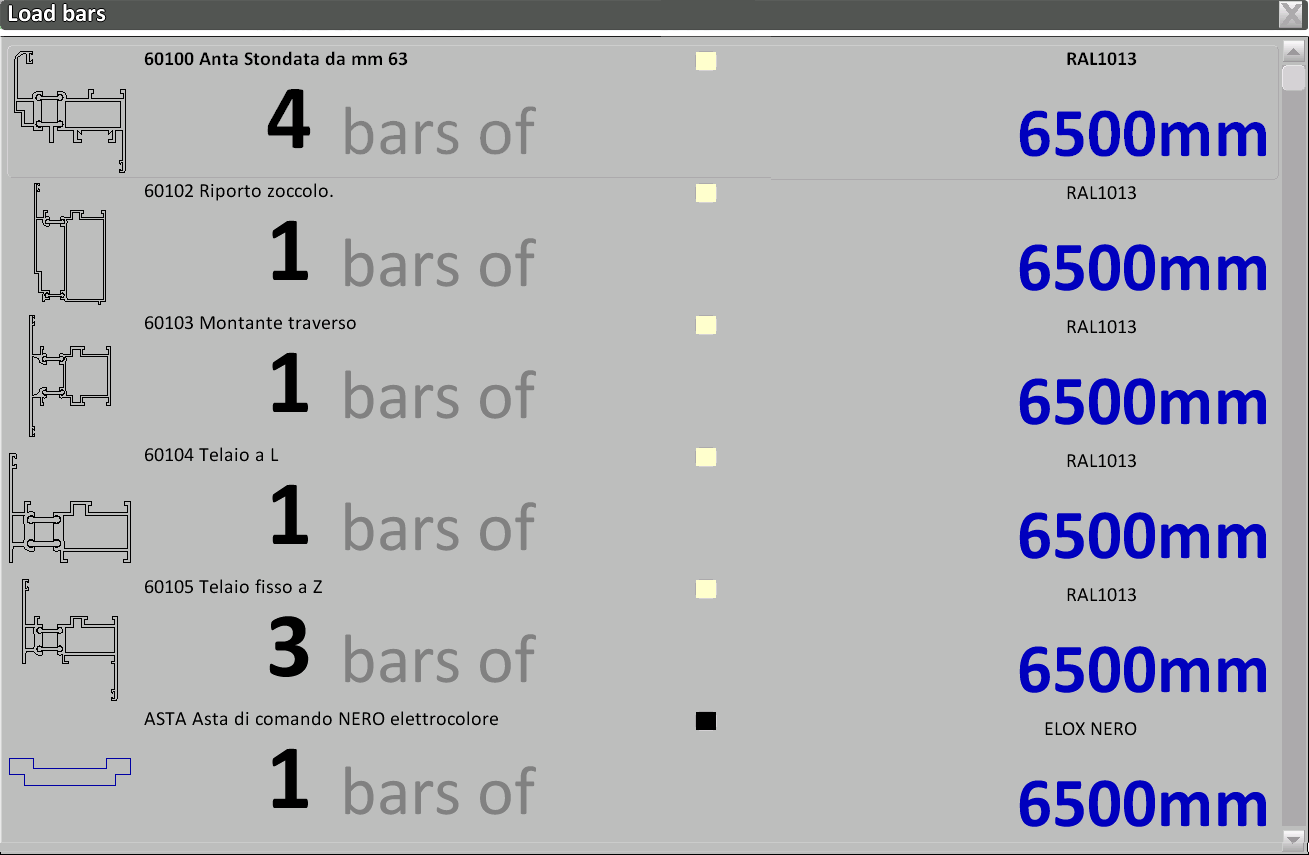

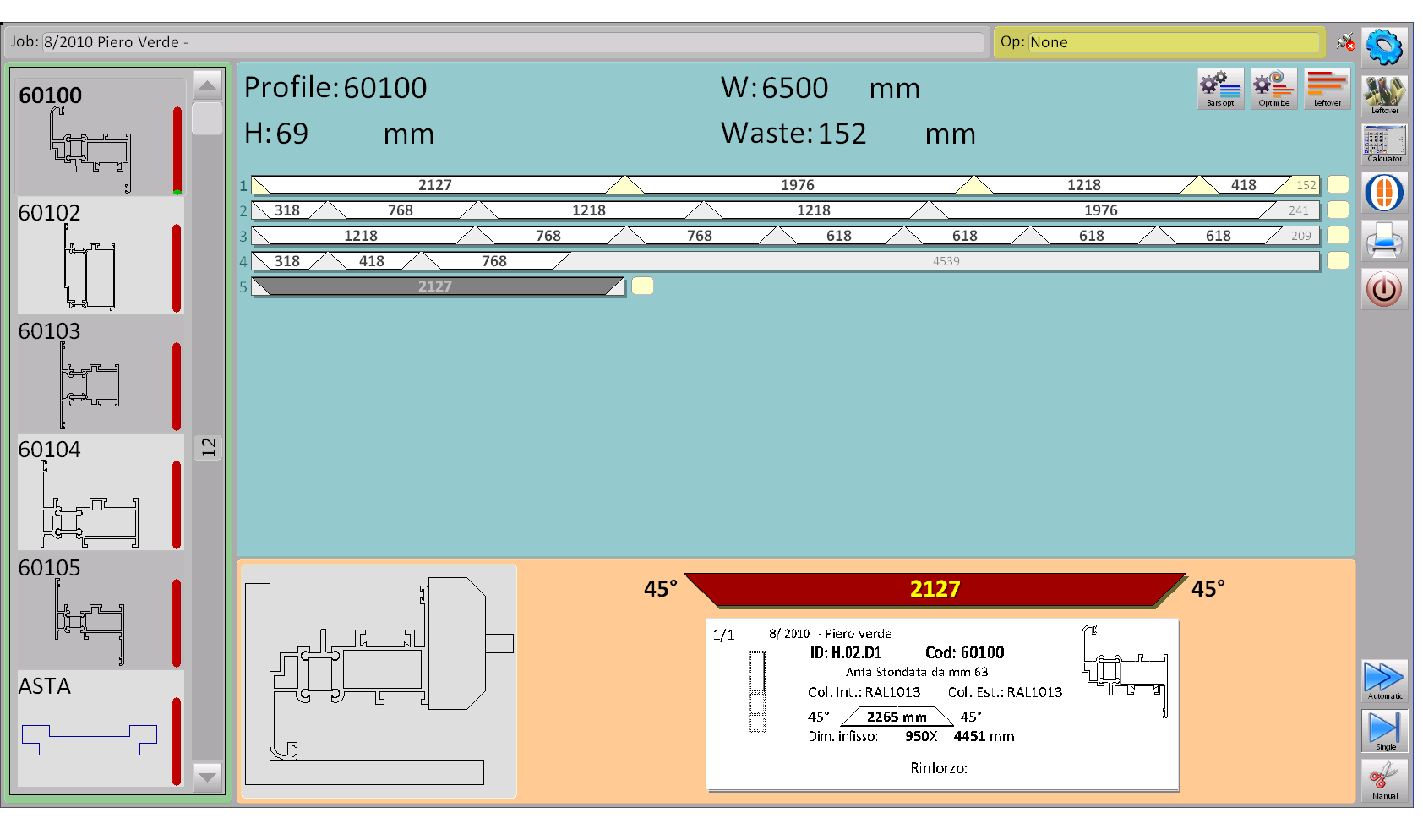

Sprint Label visualizes the optimized bars, eliminating paper support.

Sprint Label allows the user to re-optimize cutlists even after work has begun, making it possibile to use existing leftover. Cutting data is transmitted in real-time to the numerical controller of the cutting machine*, avoiding the need for the operator to input it manually *cutting machine must support a suitable RS-232 communication protocol

A simple and intuitive interface has been designed for laboratory needs. Completely touch screen compliant, Sprint Label makes the user able to choose every function simply by tapping the screen.

Sprint Label produces customizable graphical labels that help to identify the parts; as well as making it possibile to print the barcode for the machining center, the drawing of the casements and the workpiece as well.
